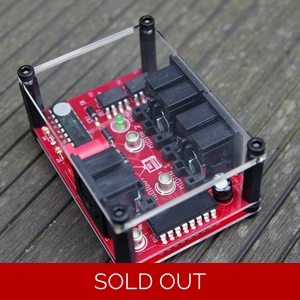

MINDBURNER MIDI 2 INTO 5 MERGE UNIT
What does it do?
This MIDI device 'merges' two MIDI data streams to 5 outputs.
Perhaps you have a master keyboard and a seperate controller device with great performance controls and want to use both to control modules.
Perhaps you have a master keyboard and a seperate controller device with great performance controls and want to use both to control modules.
This differs from my basic 2>1 merge in that it effectively has a thru box built in for more outputs.
The word merge is a slight misnomer. It passes first received MIDI data and queues whatever signal arrives later and creates 5 buffered output streams.
The word merge is a slight misnomer. It passes first received MIDI data and queues whatever signal arrives later and creates 5 buffered output streams.
How is it powered?
Comes with 0.75m 2.1 to USB lead included to power from USB source.
No USB? Can also use pretty much any 5v DC 'wallwart' type power pack
With a 2.1 mm Positive on the plug tip.
No USB? Can also use pretty much any 5v DC 'wallwart' type power pack
With a 2.1 mm Positive on the plug tip.
A computer USB port or USB hub may not be suitable.
Can I use a mobile phone power bank?
Usually no. See POWER section in this link for details:
FAQs
Can I use a mobile phone power bank?
Usually no. See POWER section in this link for details:
FAQs
How do I connect it?
Plug in two master controller keyboards into the MIDI IN jacks of the merge unit.
Plug in a DAW/modules etc into the MIDI out ports.
Plug in said Power adapter/USB lead
Job done
Notes
If sending very large amounts of controller data simultaneously
there may be an impact on the merge speed.
Features
✫ Power and MIDI signal LEDs
✫ Reverse polarity protection
✫ All MIDI messages passed
clock, sysex etc
✫ High speed opto IC's
✫ Dimensions 100L x 100W x 25H cm
✫ Power consumption <21mA
✫ Latency <0.3ms
Contents:
MIDI Device
USB Power Lead
✫ Reverse polarity protection
✫ All MIDI messages passed
clock, sysex etc
✫ High speed opto IC's
✫ Dimensions 100L x 100W x 25H cm
✫ Power consumption <21mA
✫ Latency <0.3ms
Contents:
MIDI Device
USB Power Lead
Product Code: MERGE-THRU
Brand: Mindburner MIDI
Product Condition: New
weight: 100.0g
