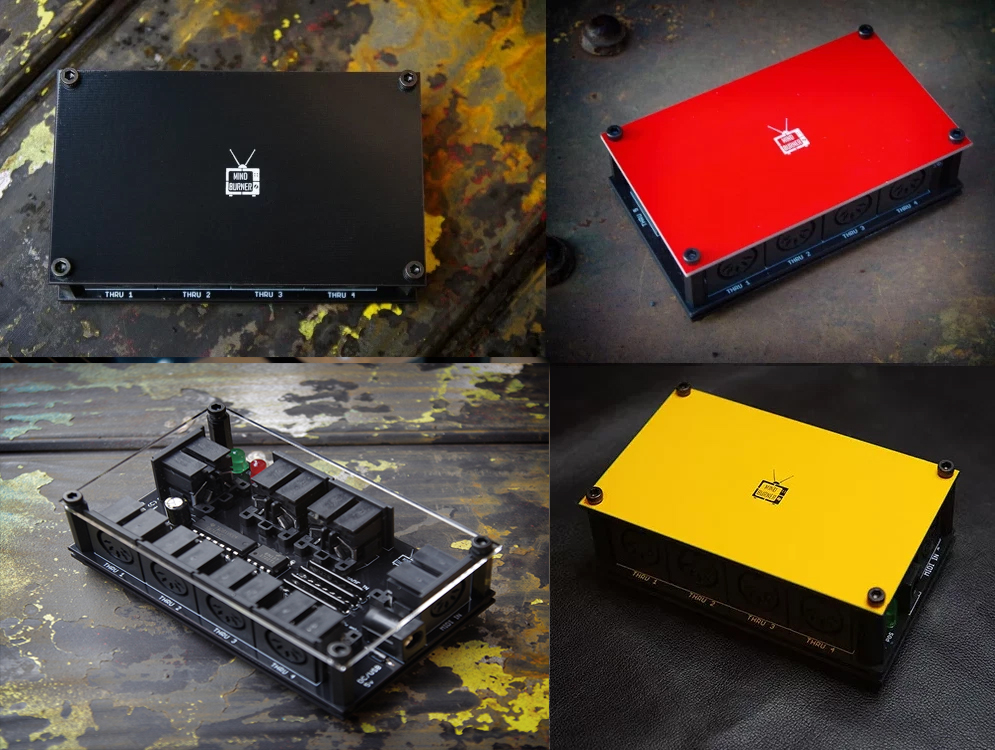

MINDBURNER 7 WAY MIDI THRU SPLITTER
What does it do?
This midi through box will provide 7 identical outputs from 1 input.
There is no noticeable signal drop or delay in it's design.
This device saves daisy chaining
i.e. linking one device to the next.
How is it powered?
Comes with 1 meter 2.1 to USB lead to power from USB
No USB? Can also use pretty much any 5v DC 'wallwart' type power pack
With a 2.1 mm Positive on the plug tip.
Can I use a mobile phone power bank?
Usually no. See POWER section in this link for details:
FAQs
How do I connect it?
Plug in a master controller keyboard MIDI out into the MIDI IN jack on the splitter.
Plug in slave modules, synths and drum machines etc..into the 5 MIDI thru jacksPlug in said Power adapter/USB lead.
Job done
Features:
✫ DC Power and MIDI signal LEDs
✫ Very fast with no noticeable drop
✫ High speed opto isolated buffered IC design
✫ Passes all necessary MIDI messages
sysex etc.
✫ Dimensions 100W x60L x25H mm
✫ Power consumption <20mA
Link to connection help
Product Code: THRU7
Brand: Mindburner MIDI
Product Condition: New
weight: 96.0g
